Specific type of production rate $\begin{array}{l}q(t)\end{array}$ decline:

(1)	$\begin{array}{l}\displaystyle q(t) = \frac{q_0}{ \left( 1+b \cdot D_0 \cdot t \right)^{1/b} }\end{array}$

(2)	$\begin{array}{l}\displaystyle Q(t)=\frac{q_0}{D_0 \, (1-b)} \, \left[ 1- \left( \frac{q(t)}{q_0} \right)^{1-b} \right]\end{array}$

(3)	$\begin{array}{l}\displaystyle Q_{\rm max}=\frac{q_0}{D_0 \cdot (1-b)}\end{array}$

(4)	$\begin{array}{l}\displaystyle D(t) = \frac{D_0}{1+ b \cdot D_0 \cdot t}\end{array}$

where

$\begin{array}{l}q_0 = q(t=0)\end{array}$	Initial production rate of a well (or groups of wells)
$\begin{array}{l}D_0 > 0\end{array}$	initial Production decline rate
$\begin{array}{l}0 < b < 1\end{array}$	model parameter characterizing the decline rate
$\begin{array}{l}\displaystyle Q(t)=\int_0^t q(t) \, dt\end{array}$	cumulative production by the time moment $\begin{array}{l}t\end{array}$
$\begin{array}{l}Q_{\rm max} =\int_0^{\infty} q(t) \, dt\end{array}$	Estimated Ultimate Recovery (EUR)
$\begin{array}{l}\displaystyle D(t) = - \frac{dq}{dQ}\end{array}$	Production decline rate

It can be applied to any fluid production: water, oil or gas.

Hyperbolic Production Decline is an empirical correlation for production from a finite-reserves $\begin{array}{l}Q_{\rm max} \leq \infty\end{array}$ reservoir.

The Production decline rate is starting at its maximum $\begin{array}{l}D_0\end{array}$ and then gradually reduces to zero.

A typical example of various fitting efforts of Hyperbolic Production Decline are brought on Fig. 1 – Fig. 3 with hyperbolic fitting being a clear winner.

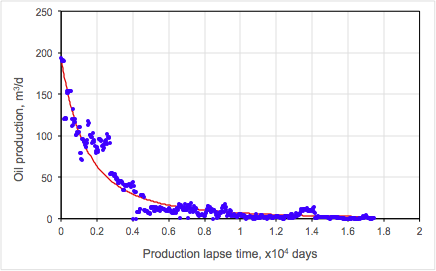

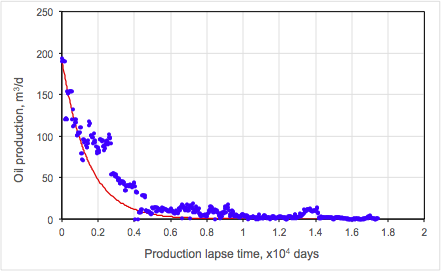

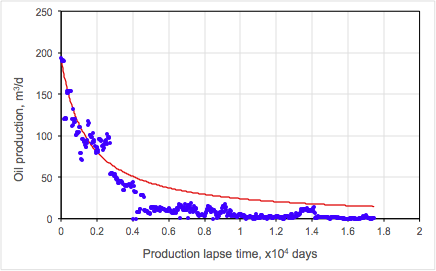

Fig. 1. Exponential best fit to Hyperbolic Production Decline	Fig. 2. Hyperbolic best fit to Hyperbolic Production Decline	Fig. 3. Harmonic best fit to Hyperbolic Production Decline
