The late time interval of the
pressure transitions during which bottom-hole pressure is evolving under Boundary Dominated Flow (BDF) well flow regime (see LTR at Fig. 1)

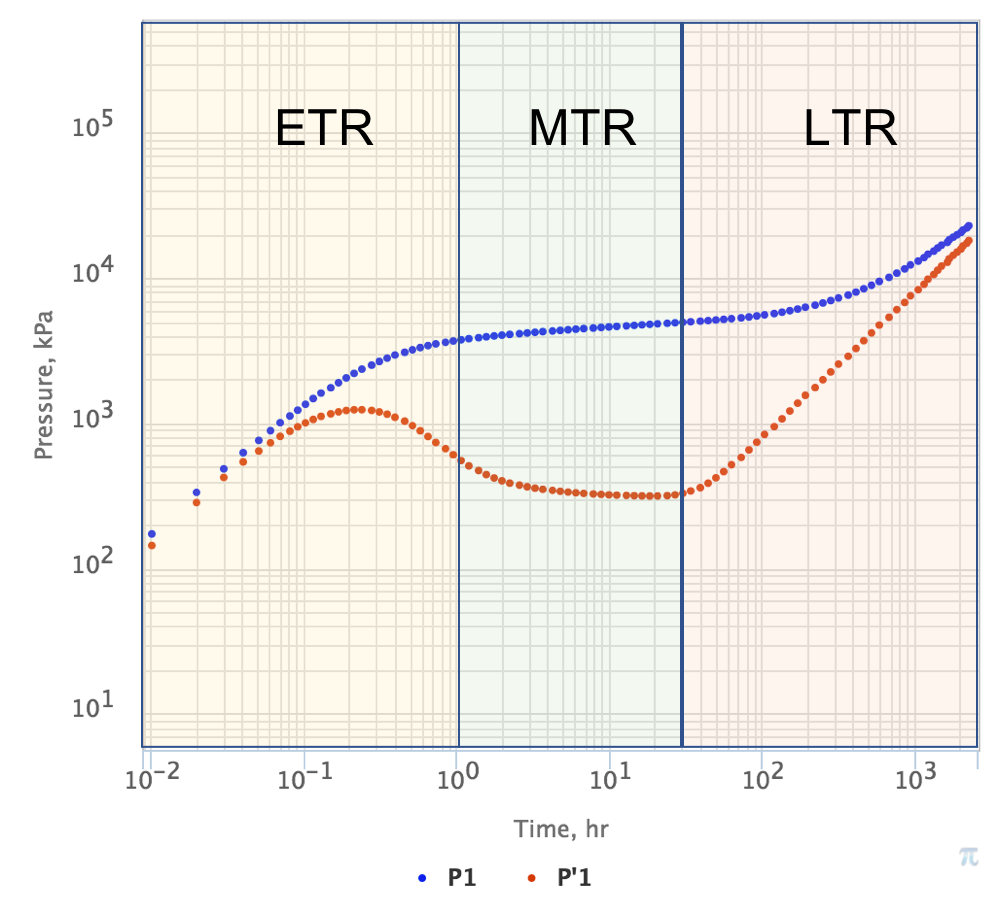

Fig. 4. PTA Diagnostic Plot with ETR, MTR and LTR time zones.

Pressure drop is in blue and log-derivative is in red.
